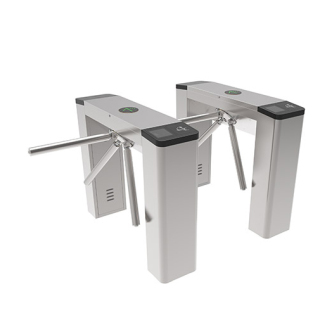

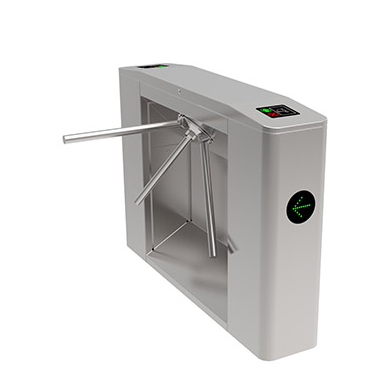

SUS 304 Tripod Barrier Gate Turnstile Pedestrian Automatic Access Control System

SUS 304 Tripod Barrier Gate Turnstile Pedestrian Automatic Access Control System

1. Dimensions: length * width * height: 1400mm * 280mm * 980 mm

2. Box material: 1.5mm thick SUS304

3. Gate rod length: 510mm

4. Channel width: ≤550mm

5. Ambient temperature: -20°C~60°C

6. Working environment: indoor and outdoor

Function overview

　　The three-roller gate is a product that provides efficient and safe control of pedestrian traffic. The interior design is simple, according to customer needs, the chassis has enough space to integrate other types of access control systems, various displays, pedestrian counters, card readers, token readers, direction indicators, operation consoles, unauthorized entry alarm systems, etc., and can also communicate with the computer through RS485, and the unique power off automatic pole drop function can bring great security to the passage in emergency conditions. In an emergency, high-density pedestrians can be quickly cleared to ensure safety. The three-roller gate can establish a very safe passage environment, which is widely used in tourist attractions, office buildings, office buildings, schools, gymnasiums, docks, railways, high-end communities, etc.

Basic parameters

　　1. Dimensions: L*W*H: 1400mm *280mm*980mm

　　2. Box material: 1.5mm thick SUS304

　　3. Gate length: 510mm

　　4. Channel width: ≤550mm

　　5. Ambient temperature: -20 degrees ~ 60 degrees

　　6. Working environment: indoor and outdoor

 Technical parameters

　　1. Input voltage: 100V~240V

　　2. Drive voltage: 24V

　　3. Equipment power: 30W

　　4. Response time: 0.2S

　　5. Speed: normally open 50 people/min; Normally closed 35 people/minute

　　6. Communication interface: RS485

　　7. Communication distance: less than 1200m

　　8. Electromagnet driving voltage: DC 24V ±5%

Functions and characteristics

　　1. It has a stable and reliable mechanical locking device, a precision movement and a turntable combination structure with special technology;

　　2. With two-way traffic function, the gate rod steering is divided into two-way and one-way;

　　3. With the function of power off and rod dropping, in an emergency, the gate automatically drops the pole, pedestrians can pass quickly, to meet the requirements of the fire escape;

　　4. After the pedestrian reads the valid card, if the pedestrian does not pass within the specified time of the system, the system will automatically cancel the pedestrian's access permission;

　　5. External two-way arrow indicator can be connected to prompt the traffic status, and can pass or prohibit passage;

　　6. Can be connected to an external two-way traffic counter, which can show the number of people passing in the direction of passage;

　　7. There is a DIP switch on the control board, which can adjust the passage delay time through the algorithm, and can also be adjusted to a memory mode, for example: swipe the valid card five times, over five people;

　　8. The anti-reverse device function prevents the rotating unit from rotating in the opposite direction to the original;

　　9. Unified standard external electrical interface, can be connected with a variety of card readers, and can be remotely controlled and managed through the management computer;

　　10. The whole system runs smoothly and has low noise;

　　9. Drop rod drive voltage: DC12V ±5%

　　10. Gate rod drop: Power off rod drop mode

　　11. Open signal input: dry contact

　　12. Opening and closing time: less than 1S
